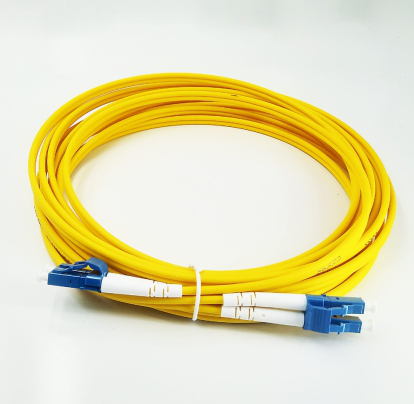

Patch Cords & Pigtails
Factory-terminated patch cords and single-ended pigtails for exchanges, data rooms and customer premises, built with connectors from leading global manufacturers. OS2 single-mode and OM2/OM3/OM4 multimode, UPC or APC polish, LSZH or PVC jacket.
Features
- Factory-terminated to your specification
- Zirconia-ceramic ferrules, ≥ 500 matings
- 12-colour TIA-598 pigtail sets for splicing
- Individually bagged and labelled
Applications
- Exchange racks
- Data rooms
- Customer premises
- Splice panels & LIUs
Specifications are typical unless stated and may change without notice. Patch cords and assemblies are terminated with connectors from leading global manufacturers; Scientific optical transceivers are made in India. Confirm current values with our sales team before ordering.
Build options
- Fibre
- OS2 single-mode (G.652D / G.657A1) · OM2 · OM3 · OM4
- Connectors
- SC · LC · FC · ST, any combination
- Polish
- UPC · APC (single-mode) · PC (multimode)
- Construction
- Simplex · duplex (zip-cord)
- Cable Ø
- 2.0 mm · 3.0 mm; 0.9 mm for pigtails
- Jacket
- LSZH or PVC, colour-coded by fibre grade
- Length
- 0.5 m upwards, made to order
- Pigtails
- 0.9 mm tight-buffered, 12-colour TIA-598 sets
Range
- Product range
- Patch cords & assemblies
Performance by polish
| SM UPC | SM APC | MM | |
|---|---|---|---|
| Insertion loss | ≤ 0.3 dB | ≤ 0.3 dB | ≤ 0.3 dB |
| Return loss | ≥ 50 dB | ≥ 60 dB | ≥ 30 dB |
| Ferrule | Zirconia | Zirconia | Zirconia |
| Durability | ≥ 500 | ≥ 500 | ≥ 500 matings |
| Operating | -20/+70 °C | -20/+70 °C | -20/+70 °C |
≤ 0.3 dB
Insertion loss
≥ 60 dB
APC return loss
≥ 500
Mating cycles
0.5 m +
Lengths to order
